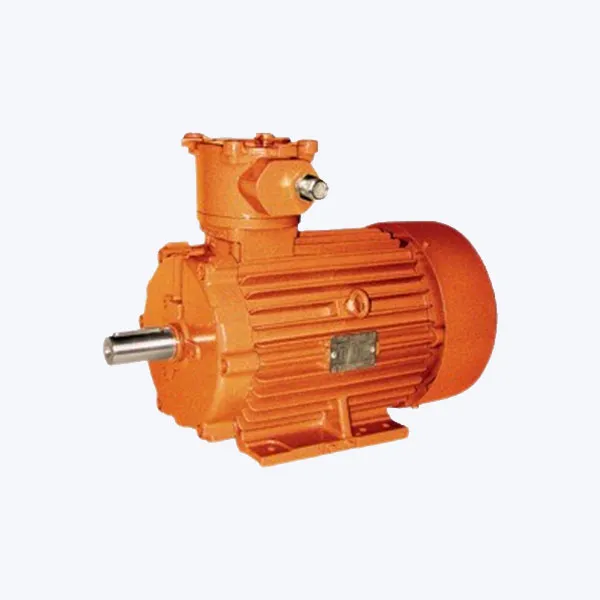

FLSD

Key Features:
– Flame-proof (Ex d) motor for gas atmospheres (Zone 1)
– Cast-iron frame for robustness • High-efficiency (IE3) design
– Certified to ATEX & IECEx, optional surface finish for corrosive environments
– Compatible with variable-speed drives (inverter)

Specification:
– Power range: ~0.75 kW up to ~200 kW (some sources up to 400 kW depending on variant)
– Frame sizes: 80 mm up to 315 mm (or up to 355 mm in some catalogues)
– Number of poles: 2, 4, 6 (some versions 8)
– Protection: IP55 or IP66 (depending on variant)
– Voltage: typical 400/415 V (50 Hz); 460 V (60 Hz) in some variants
– ATEX marking: Ex d / d-eb IIB / IIC T-class (various)
