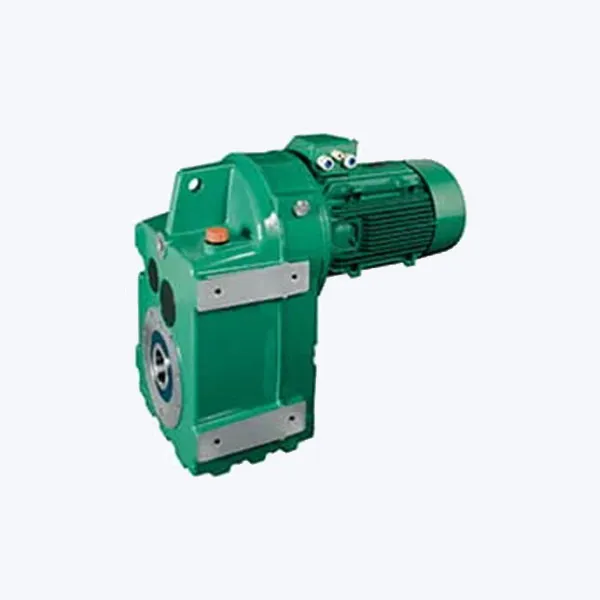

Manubloc – zone 22

Helical geared motor with parallel output for explosive dust atmosphere (non-conductive)

Key Features:
– Designed for ATEX dust atmospheres (Zone 22, category 3D) – safe for non-conductive dust.
– Monobloc cast-iron frame with parallel shaft (output shaft or hollow shaft / shrink disc) design.
– Built-in durability for industrial environments: shock/vibration resistance, modular mounting options.

Specification:
– Power range: 0.25 to 30 or 110 kW
– Reduction ratio range: ~2.8 to ~272 as per catalogue for Manubloc 3000 series.
– Output torque range: up to ~14 500 N·m in high-torque models. (Reference for “3000” family)
– Ingress protection: IP 65
