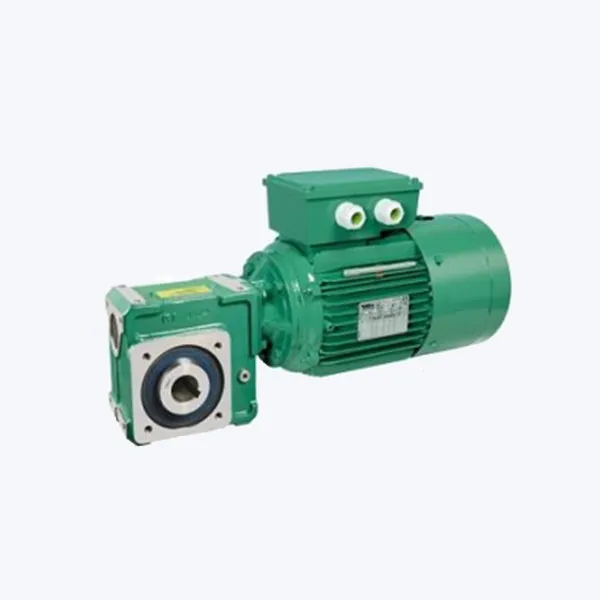

Multibloc

Worm & wheel right-angle gearbox (compact)

Key Features:
– Worm-and-wheel right-angle gearbox family (compact).
– Good for compact mounting, high reduction in small footprint.
– Available with LSMV/LSRPM motor bases for VSD or PM motor integration.

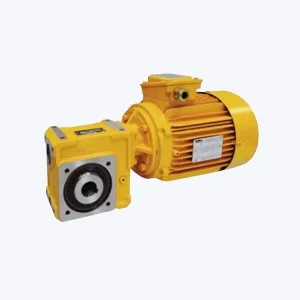

– ATEX variants (zone 21/22) available for dust/gas environments.

Specification:
– Ratio range: typically ~5 → ~100 (varies with subseries).
– Power range: small to medium (fractions of kW up to ~9–15 kW for standard worm sizes; larger if combined with helical stages).
– Output torque: dozens to low-thousands N·m depending on series.
– Protection: IP55 / IP65 typical.
