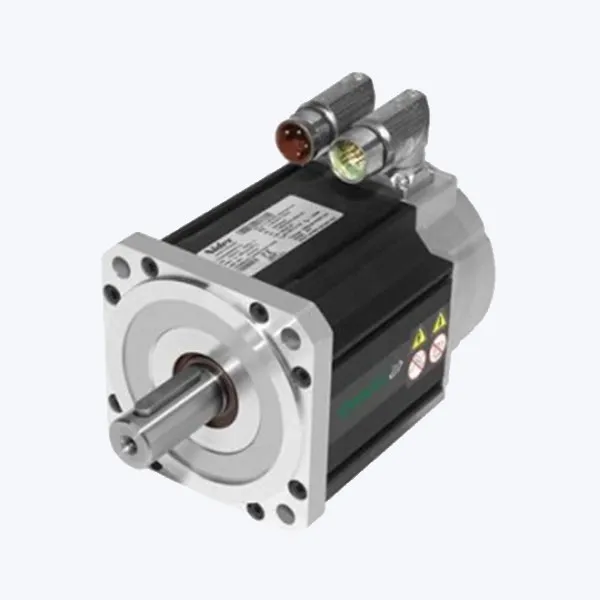

UNIMOTOR HD

Brushless AC servo motor (high-dynamics)

Key Features:
– High-dynamic, low-inertia servo motor range.
– Designed for rapid acceleration/deceleration, high torque-to-inertia ratio.
– Compact but powerful, sealed to IP65, segmented stator, larger shafts for torsional rigidity.

Specification:
– Torque: approx 0.72 Nm to 85 Nm rated; peak up to ~255 Nm.
– Frame sizes: 55, 67, 89, 115, 142, 190 mm.• Speed rating examples: 2000, 3000, 4000, 6000 rpm.
– Voltages: e.g., 200/240 V or 380/480 V (in some versions) for servo use.
