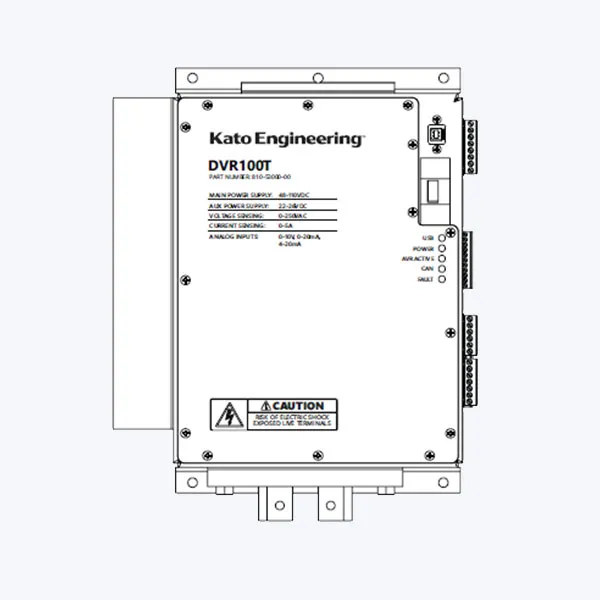

DVR100T

Key Features:
– Digital excitation control using an advance microcontroller with digital signal processing capabilities
– Programmable soft start and V/Hz
– Four programmable digital inputs
– Three programmable relay outputs
– One service relay output
– Auxiliary DC power supply input
– Four programmable analog inputs
– DC supply outputs (+24V ± 15 V) for powering analog sensor
– USB for connecting to user interface
– Universal communications card for remote monitoring and connecting to user interface
– Field excitation regulation (FER)
– Monitoring features

Specification:
– Main power supply DC voltage nominal 72 V
– Auxiliary power supply 24 VDC
– Voltage sensing 1ph / 3ph, 0 to 25 VAC RMS isolated, 0 to 420 Hz
– Current sensing 1ph / 3ph, 5A AC nominal
– Analog inputs 0-20mA, 4-20mA, 0-10V
