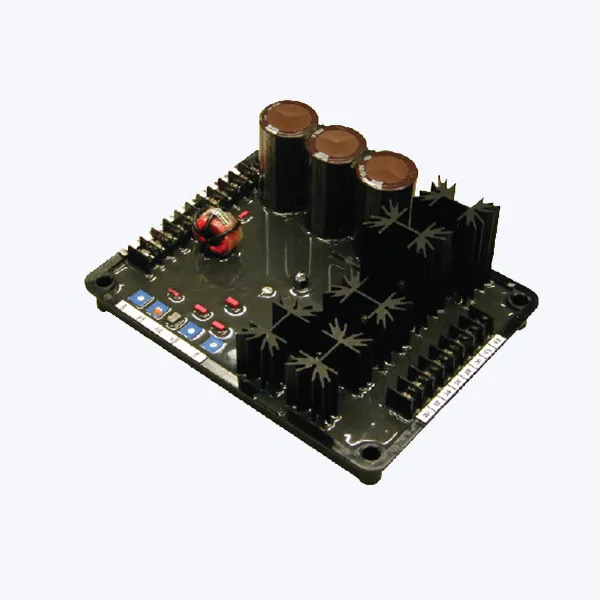

K65-12B / K125-10B

Key Features:
– Frequency compensation with selectable slope
– Inverse time over-excitation shutdown
– Solid-state built-up circuitry
– 1ph / 3ph voltage sensing
– Shunt or PMG Permanent Magnet power input

Specification:
– Output power (with a 240 Vac input)
1 12Adc @ 65 Vdc Maximum continuous, 25Adc @ 125 Vdc forcing for 10 sec.
2 10Adc @ 125 Vdc Maximum continuous, 20Adc @ 250 Vdc forcing for 10 sec.
– AC Input Power
1 100 to 280Vac, 1ph 50 to 400 Hz or 63 to 105Vac, 3ph 50 to 400 Hz, 1,092VA max continuous burden
2 180 to 280Vac, 1ph/3ph, 50 to 400 Hz, 1,750VA max continuous burden
– AC Sensing voltage 90 to 140 Vac, 50/60 Hz
– External voltage adjust rheostat 10k Ω, 2 W, potentiometer
– Regulation accuracy ± 0.5% average responding
– EMI suppression internal filter
