EASYLOG PS | DATALOGGER

Key Features:

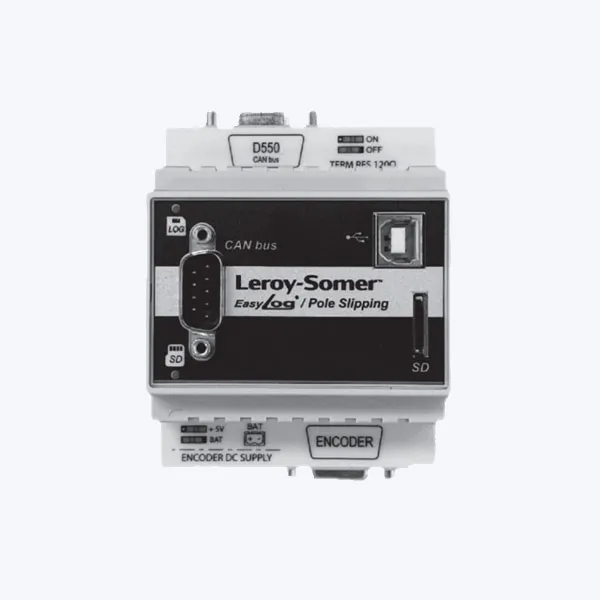

– The EasyLogPS (PS standing for Pole Slipping) is an add-on module also dedicated to be connected to the D550 and intends not only to record data (this module embeds the functionalities of the EasyLog module), but also acts as a gateway for CAN bus communication and encoder.
– The connector labelled D550 is dedicated to connect the EasyLogPS to the D550 CAN connector. Next to this connector is a switch allowing to activate or not the CAN termination 120 Ohms resistor depending of the CAN network topology.
– This input labelled DC SUPPLY, ranging up to 35VDC, is used to supply the encoder through the SubD-HD15 connector.
– On the bottom is the SubD-HD15 on which the encoder is fitted. The pinout of this connector is given in the table below.
– The EasyLogPS is compatible with TTL encoders (5V) and HTL encoders as well. The selection of the encoder type is done with “5V OFF/ON” switch on the left bottom of the EasyLogPS.

Dimensions: L96 x W70 x H63 mm
